TOOL IFT SET 33 / Industry Fitting Tool – SNR Bearing Mounting Kit

SNR TOOL IFT SET 33 / Industry Fitting Tool Set is a professional mounting kit designed for fast, precise, and safe cold mounting of bearings. The kit includes 33 impact rings, 3 mounting sleeves, and a special dead-blow hammer. The impact rings are suitable for approximately 400 different bearing sizes and feature permanent markings for easy identification of the correct size.

Wide range of applications

The kit is designed for mounting bearings with:

• 10 to 50 mm bore diameter

• 26 to 110 mm outside diameter

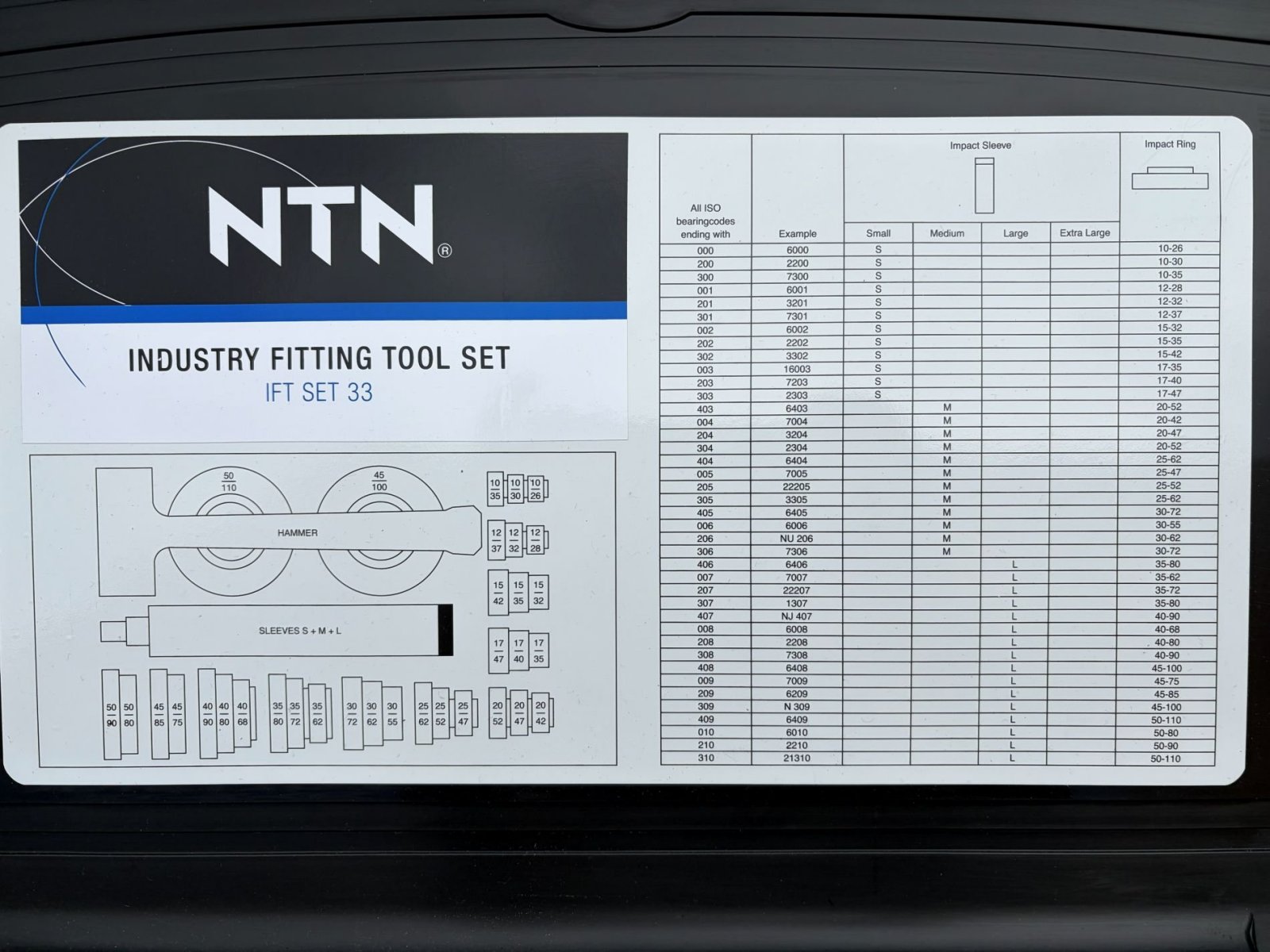

With 33 impact rings, the kit covers approximately 400 different bearing sizes. The dimensions are clearly and permanently marked on each ring, making it easy to select the appropriate ring for the mounting application.

Gentle mounting without metal-to-metal contact

The impact rings are made of impact-resistant synthetic material, preventing direct metal-to-metal contact during mounting. Using the appropriate ring together with a mounting sleeve allows the bearing to be installed into the required fit.

The simultaneous support of the inner and outer bearing rings helps prevent damage to the bearing raceways and rotating components. The kit is also suitable for mounting other components, such as sealing rings, gears, and pulleys.

Robust design for workshops and maintenance

The kit includes three lightweight and robust aluminium mounting sleeves designed for a secure grip. The impact rings are designed for long service life and can also be used in combination with a press.

The mounting kit also includes a special dead-blow hammer weighing 0.7 kg, designed to efficiently transfer impact force during mounting.

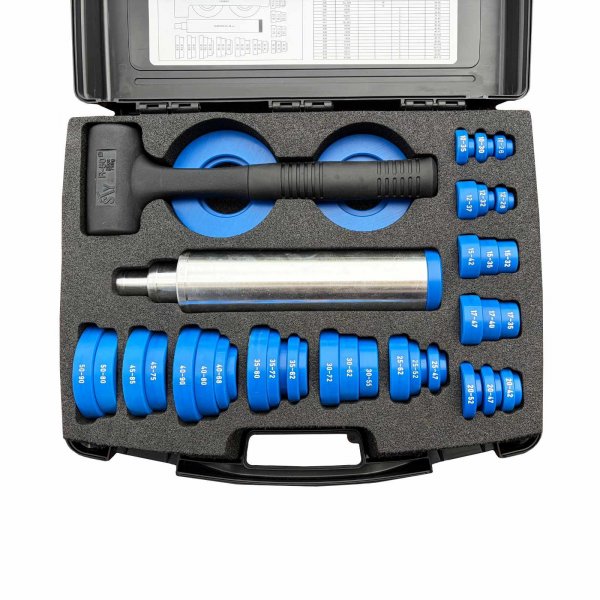

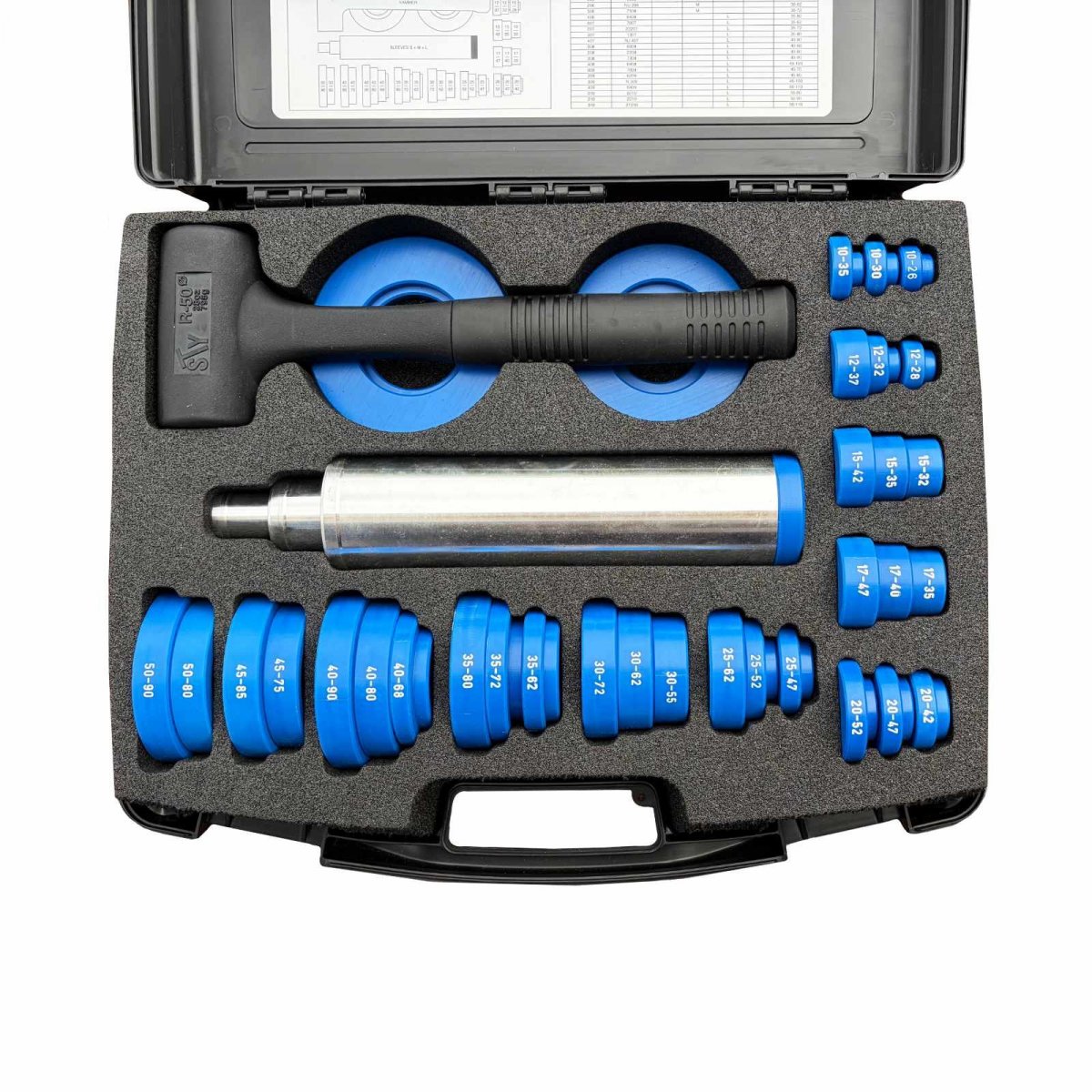

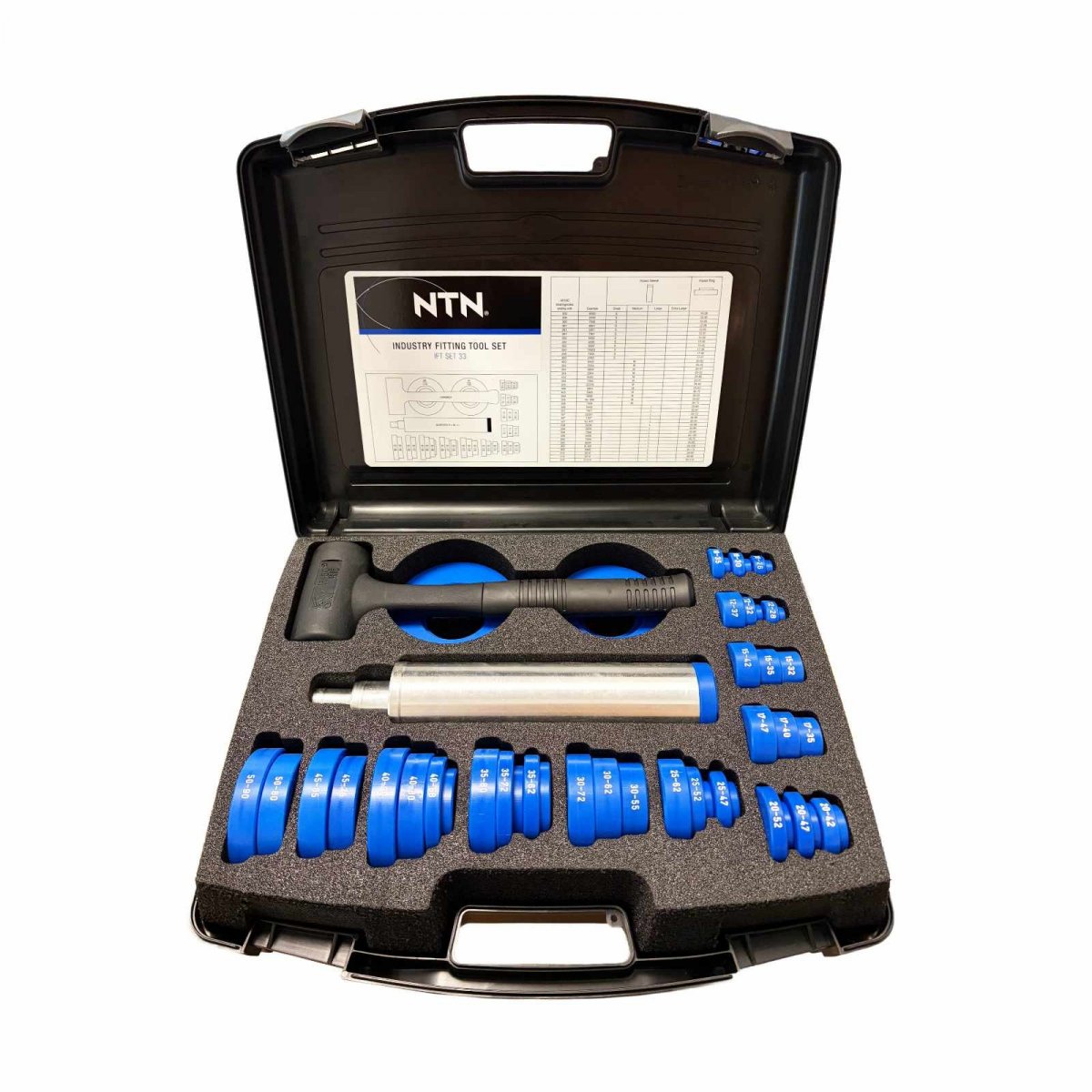

Kit contents

• 33× impact rings

• 3× aluminium mounting sleeves

• 1× dead-blow hammer, 0.7 kg

• 1× carrying case

Key benefits

• professional kit for cold mounting of bearings

• 33 impact rings for approximately 400 bearing sizes

• suitable for bearings with a 10–50 mm bore diameter

• suitable for bearings with a 26–110 mm outside diameter

• impact rings made of impact-resistant synthetic material

• reduced risk of metal-to-metal contact during mounting

• permanent markings for easy ring identification

• 3 robust aluminium mounting sleeves

• special 0.7 kg dead-blow hammer

• can also be used with a press

• also suitable for mounting sealing rings, gears, and pulleys

• practical design supplied in a carrying case

• original professional NTN equipment

SNR TOOL IFT SET 33 provides a complete mounting solution for safe and precise cold mounting of bearings in workshops and industrial maintenance applications.
