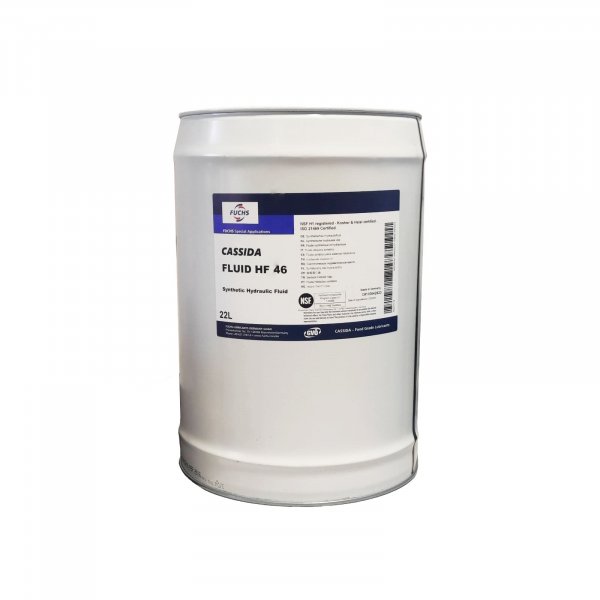

food industry oil Cassida FLUID HF 46, 22L FUCHS

CASSIDA FLUID HF 46 is a high performance multi-purpose oil with high wear protection. The oil has been developed specifically for machines used in food and beverage processing and packaging. It is based on synthetic oils and selected additives carefully chosen for their ability to meet the stringent requirements of the food industry.

The product is NSF certified to ISO 21469 and registered as Class H1 (lubricants approved for incidental food contact). It meets the guidelines (1998) of the U.S. Department of Agriculture's Public Health Agency (USDA FSIS) and has been approved by USDA FSIS as Class H1 and published in the USDA FSIS Order No. 1419 "List of Proprietary Substances and Non-Food Compounds".

The product contains only ingredients meeting US 21 CFR 178.3570, 178.3620 and 182 (components approved for incidental food contact).

Use

• Hydraulic systems

• Hydrostatic transmissions

• Slip and rolling bearings

• Lightly loaded gearboxes

• Circulating lubrication systems

Compatibility

Compatible with elastomers, seals, closures and dyes commonly used in lubrication systems in the food industry.

Specifications and Certificates

• NSF H1

• NSF ISO 21469

• Kosher

• Halal

• DIN 51524 HLP

• DIN 51524 HVLP (except HF 15)

Features

• The base fluid has the ability to provide quality lubrication in almost all production conditions.

• Good wear protection ensures longer component life, resulting in lower maintenance costs.

• Excellent water separation prevents the formation of potentially harmful emulsions.

• Excellent air separation and minimal foam formation.

• Resistance to formation of harmful oxidation products even at elevated temperatures increases oil life.

• Neutral odour and taste.

• High viscosity index ensures minimal viscosity changes due to temperature changes.

• Effective corrosion protection of metal surfaces.

Synthetic lubricant

• Contains no natural products derived from animals or genetically modified organisms.

• Contains no allergens or their derivatives as defined in Annex EU Directive 2003/89/EC

• Also suitable for use in the production of vegetarian foods.

• Biostatic, does not stimulate the growth of bacteria and fungal organisms.

In accordance with the requirements of US 21 CFR 178.3570, contact with food should be avoided where possible. In the event of accidental contact with food, the product concentration should not exceed 10 ppm (10 mg/kg food). In locations and applications where local legislation does not specify maximum concentration limits, it is recommended not to exceed the 10 ppm limit of CASSIDA FLUID HF. Up to this concentration level, the undesirable taste, odour or colour of the lubricant is not transferred to food and has no adverse health effects. In accordance with the manufacture, use only the necessary amount of lubricant and take appropriate measures to prevent excessive contact of the lubricant with food.

Based on the available information, CASSIDA FLUID HF 46 does not pose any risk to human health and safety when used for the recommended application and the principles of occupational safety and hygiene are followed. As with all oils, prolonged and repeated contact of the lubricant with the skin should be avoided.

Handling and storage

All food grade lubricants should be stored separately from other lubricants, chemicals and food away from direct sunlight and other sources of heat. Suitable storage temperature is 0 to 40°C. For
these conditions, the product can be stored and used for 5 years from the date of manufacture in the original packaging intact. Once opened, the product must be consumed within 2 years.

Be sure the container is clean before opening. It is recommended to clean it first with CASSIDA FLUID FL 5 and/or drinking water and dry it with a clean cloth.

Characteristics of CASSIDA FLUID HF 46

• Colour:  colourless

• Density at 15°C: 836 kg/m3

• Flash point: 248 °C

• Hardening point: -60 °C

• Viscosity of base oil at 40 °C: 46 mm2/s

• Viscosity of base oil at 100 °C: 7.9 mm2/s

• Viscosity index: 142

• Operating temperature range: -60/+140 °C

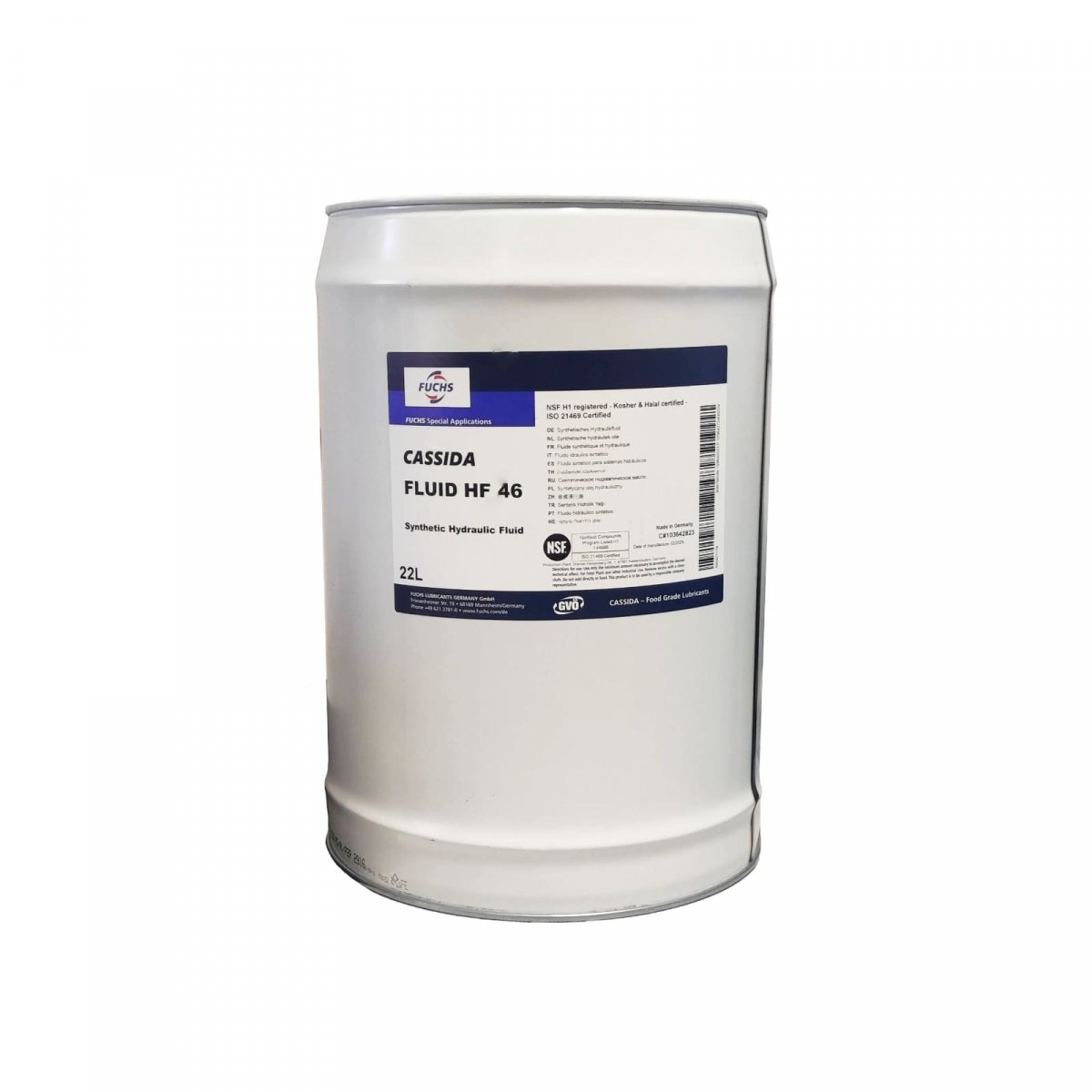

Packaging: canister 22L
