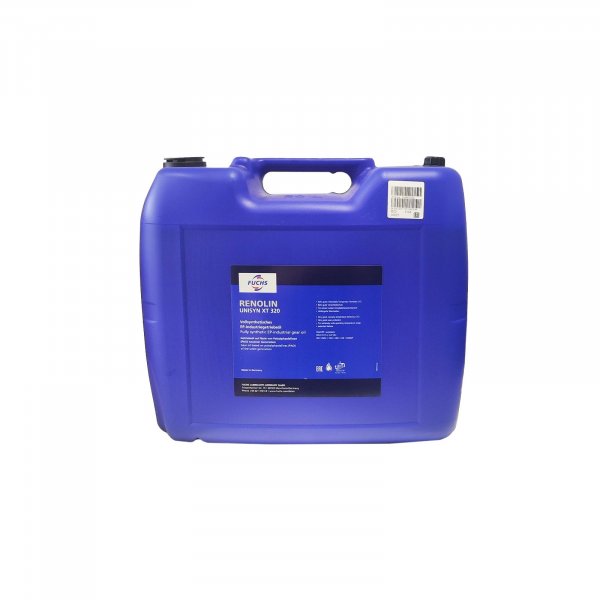

industrial gear oil Renolin UNISYN XT 320, 20L FUCHS

RENOLIN UNISYN XT 320 is a de-emulsifying, fully synthetic industrial gear oil with increased resistance to ageing and very good load-bearing and wear protection, based on the latest generation of polyalphaolefins.

RENOLIN UNISYN XT oils have good resistance to micropitting. Reliable lubrication of rolling bearings is confirmed by good FE8 test results. They also safely meet standard and stringent FZG test conditions. In addition, RENOLIN UNISYN XT series oils have very good filterability. These products are preferably used for increased demands on upper and lower operating temperature limits. Especially in the low temperature range, RENOLIN UNISYN XT oils show significant advantages compared to industrial gear oils based on conventional PAO oils.

In gearboxes and circulating systems with tank temperatures up to 90 °C, significantly longer oil change intervals are achieved compared to conventional petroleum oils. They are generally miscible with petroleum-based gear oils, which means that substitution can be simplified. However, in order to achieve the full performance of RENOLIN UNISYN XT and immediately benefit from the advantages it offers compared to conventional oils, a full oil change, possibly combined with a system flush, is recommended.

Advantages

• excellent low temperature behaviour,

• low foaming,

• good air separation capacity,

• very good resistance to ageing,

• very good corrosion protection,

• excellent viscosity-temperature behaviour,

• very high natural VI (viscosity index),

• wide-ranging character,

• very good wear protection,

• high EP performance,

• miscible with petroleum and ester based gear oils,

• allows extended drain intervals,

• for high and low operating temperatures.

Applications

RENOLIN UNISYN XT series oils are used for all industrial applications where synthetic oil type CLP according to DIN 51517-3 is recommended by the manufacturer. Highly stressed bearings, joints, printing spindles, spur, worm and planetary gears can be reliably, safely and economically lubricated even at rare peak temperatures up to 150 °C. RENOLIN UNISYN XT series oils are particularly suitable for applications where extreme low-temperature demands are placed on the gear oil.

Specifications

These products meet and in many cases exceed the requirements of:

• DIN 51517-3: CLP,

• ISO 6743-6 and ISO 12925-1: CKC / CKD / CKE,

• AGMA 9005/E02: EP,

• AIST 224,

• Flender approval (according to Flender BA 7300, Table A).

Product packaging: 20L
