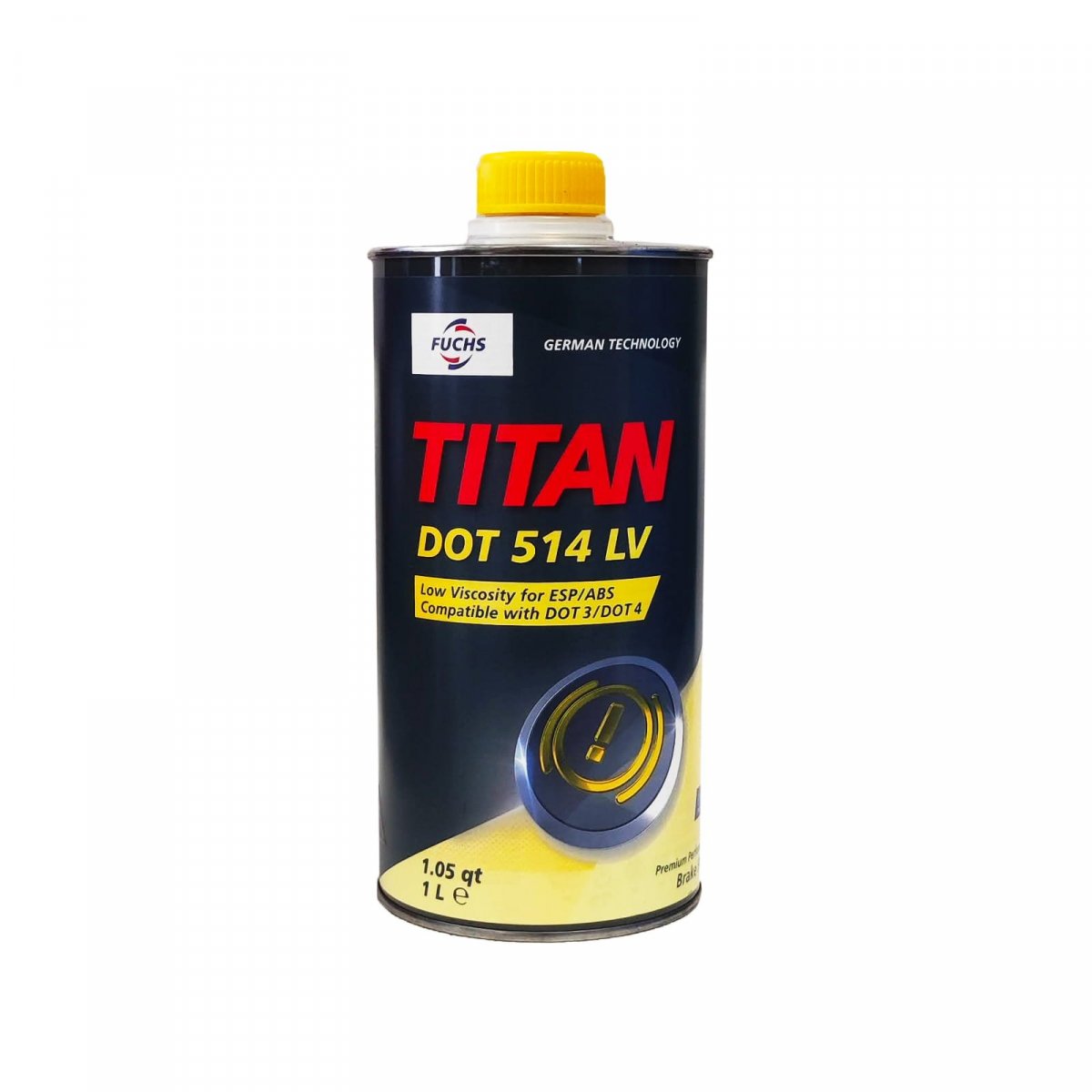

brake fluid Maintain DOT 514 LV, 1L FUCHS

Brake fluid FUCHS TITAN DOT 514 LV with premium performance meets the requirements of ISO 4925 CLASS 7. The high dry and wet boiling points of TITAN DOT 514 LV brake fluid exceed the requirements of FMVSS No. 116 DOT 3, DOT 4, and DOT 5.1, ensuring reliable functionality even during prolonged braking and at high brake system temperatures. Its low viscosity enables quick activation, meaning that safety systems such as ESP and ABS operate effectively even at low temperatures. Thanks to its advanced BluEV technology, TITAN DOT 514 LV meets the requirements for hydraulic brake systems in conventional, hybrid, and electric vehicles.

Application

When using TITAN DOT 514 LV brake fluid, vehicle manufacturer recommendations must be followed. It must not be used in braking or hydraulic systems where petroleum- or silicone-based fluids (e.g., LHM or DOT 5) are specified. TITAN DOT 514 LV was originally developed for conventional applications but also meets the requirements of selected hybrid and electric applications as specified by manufacturers. The BluEV technology thus bridges the gap between existing and new lubricant applications.

TITAN DOT 514 LV is compatible and miscible with common branded brake fluids of the same technology or specification. However, to fully benefit from its features, mixing with other fluids should be avoided. A complete fluid change is recommended when switching to TITAN DOT 514 LV. In case of contact with skin or vehicle paintwork, wash thoroughly with water.

Advantages

• Universal use in passenger cars and commercial vehicles requiring brake fluid according to ISO 4925 Class 5-1, Class 6, or Class 7,

• outperforms standard brake fluids according to FMVSS No. 116 DOT 3 and DOT 4 and can be used in corresponding applications,

• excellent protection against vapor lock due to high dry and wet boiling points,

• very fast braking system response time even at low temperatures thanks to the excellent fluidity of the low-viscosity brake fluid,

• developed specifically for modern vehicles with driving stability systems such as ABS and ESP,

• suitable for selected hybrid and electric vehicles thanks to BluEV technology.

Specifications

• FMVSS No. 116 DOT 3/4/5.1,

• ISO 4925 CLASS 3/4/5-1/6/7,

• JIS K2233 CLASS 3/4/5/6,

• SAE J1703/J1704.

FUCHS Recommendations

• BMW QV 34001,

• FORD M6C65-A2,

• FORD M6C62-A,

• FORD M6C9103-A,

• GM Europe GMW 3356,

• MB 331.0,

• PSA S71 2114,

• Renault 41-02-001/--H,

• VW TL 766-X, 766-Y, 766-Z (VW 501 14).

Product Packaging: 1L
